  •   Product Description:

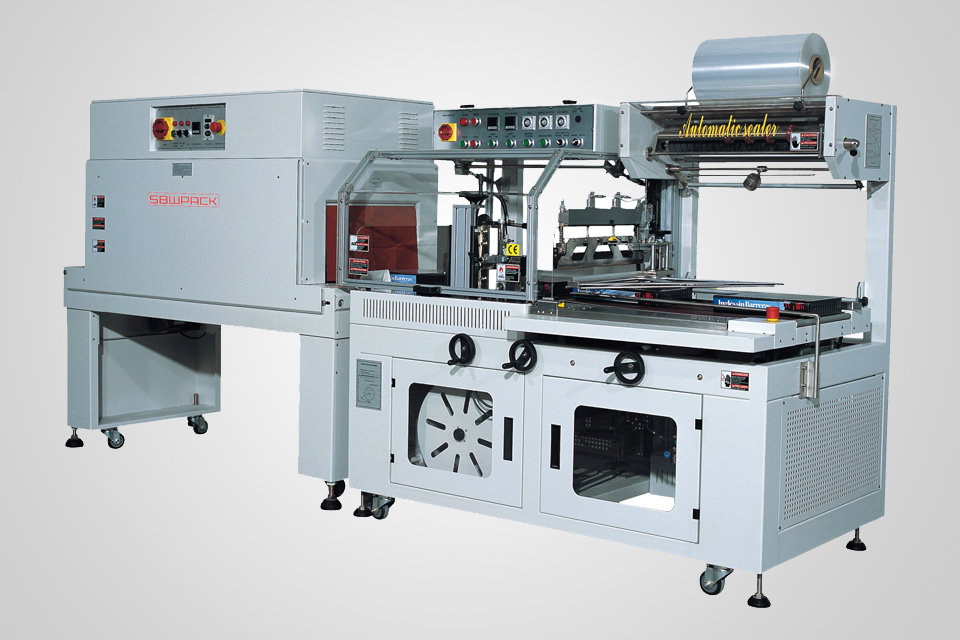

  • FL5545TBC / M + SM5030 economical side sealing shrink packaging machine
    Technical features
    · FL-5545TBD is our company developed a fully automated unmanned operation of "L" type sealer is widely used in high-volume packaging assembly line, automatic feeding, conveying, into the bag, sealing, shrink once of complete, high working efficiency, especially for the larger sizes of products higher
    · Sealing part of the vertical drive. Seal contact surface evenly. Vertical drive can overcome the traditional "L" type automatic packing machine sealing and cutting problems arise wrinkles and sealing products are not the middle of the line. Achieve excellent sealing effect
    • This machine adopts the most advanced PLC programmable controller, with security and alarm devices, and sealing and cutting system can continue to make a smooth sealing action without replacement, maintenance and operation is very easy
    · Feed length control by the electric eye in combination with the timer, precise control of film length
    · Installation of horizontal and vertical two electric eye, easy to switch choice for thin or small packaging, can easily complete the sealing packaging operations
    Automatic coiling waste, using a separate motor control, not too loose or too tight and crack, easy to remove waste
    · Packaging products of different heights, sealing knife lifting from the motor drive, the touch of a button to complete
    · Depending on the size of product packaging needs, you can add automatic blowing function
    · The level of detection with memory function, greatly improving production efficiency
    · SM-5030LX shipped using the lower part of the wind, and the wind be adjusted by the drive
    · Transported by inverter control, stepless speed
    · Furnace upper chamber can be opened for easy cleaning and maintenance
    • You can see the entire process of packaging equipment in front of the windows through
    · Can be optional front-end and back-end power feed line without power storage platform
    Scope
    · Suitable for all kinds of CD, DVD, cosmetics, electronic products, printing, box, greeting cards, photo albums, picture frames, books, boxes, and other products a single package or a combination of packaging, suitable for mass production.

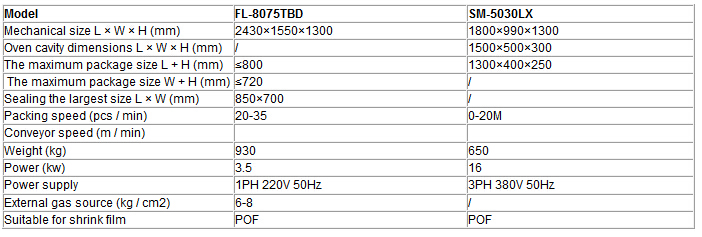

    Technical Data Sheet
