- Product Description:

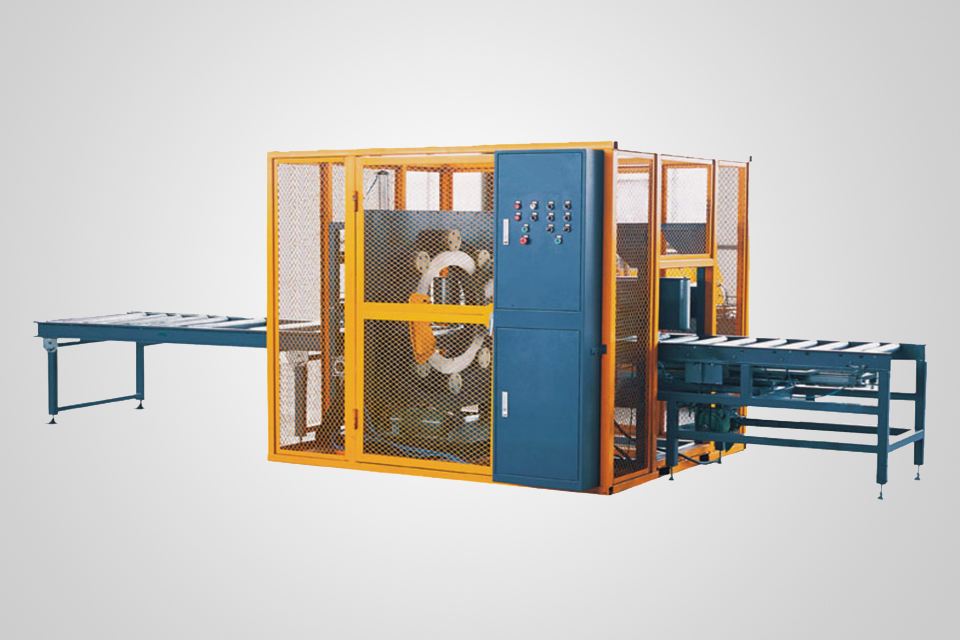

- EXP-308 Horizontal Wrapping Machine
Technical characteristics Characteristic
· Horizontal wrapping machine is suitable for packing all kinds of elongated objects. Widely used in plastic extrusions, aluminum, sheet, pipe, dyeing products and other industries. The principle is that the packaging material surrounding the goods system by the rotation of the arm along the uniform rotary motion, while adjusting the tension of the packaging material through the stretching mechanism, the overall packaging of objects to be fastened, and the surface forming the spiral packing rule, aesthetics generous, dust and moisture. With stable performance, simple operation, and reliability. Improve the quality of packaging products and enhance market competitiveness.Scope
· Horizontal wrapping machine is suitable for packing all kinds of elongated objects. Widely used in plastic extrusions, aluminum, sheet, pipe, dyeing products and other industries.Technical Data SheetModel
EXP-308
Packaging sectional diameter
≤450mm
The maximum package weight
500Kg
Total power
1.5KW
Supply Voltage
380V
Swivel speed
70 rev / min (max)
Working efficiency
30 / hour (depending on packing)
Equipment Specifications
2840mm（L)×1500mm(w)×1800mm(H)
Packaging film properties
LLDPE stretch film / PVC film (in accordance with the appropriate industry standards)
Stretch Width
250
Stretch roll outer diameter
φ270
Stretch the inner diameter roll
φ76.2
Stretch film thickness
0.035
Conveyor line height
860
The effective width of the transfer line
600
Roller conveyor line
Diameter φ60
Conveying speed
10 m
