- Product Description:

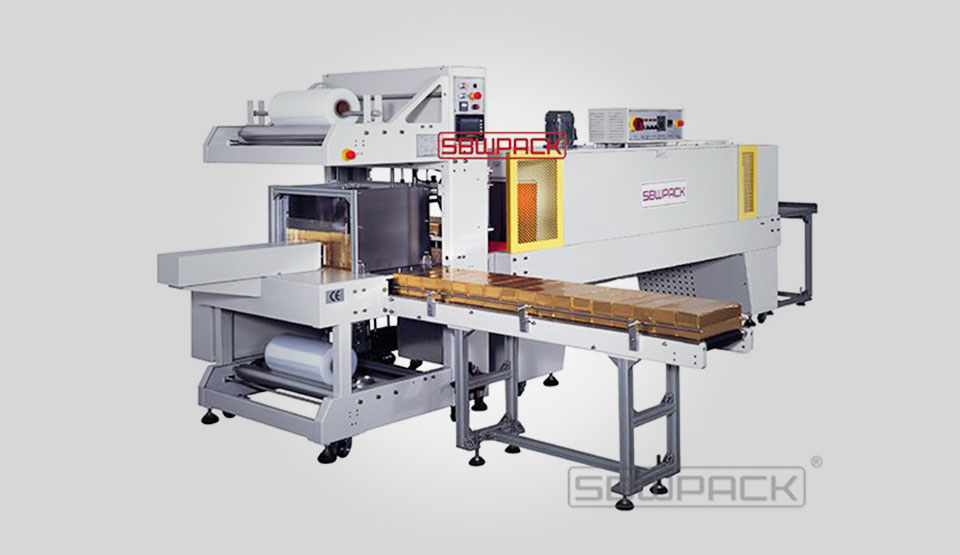

- ST6030AE + SM6040 automatic palletizing Sleeve sealing, shrink packaging machine
Technical features
· ST-6030AE + SM-6040 is suitable for all types of single or multiple layers of boxed goods without bottom bracket collective shrink wrapping, packaging process with automatic arrangement, stacking and other functions, greatly improving production efficiency, product after packaging after having a look tidy, compact lingers, ensure quality goods and long-distance transportation needs· ST-6030AE using advanced foreign manufacturing technology, unique appearance· According need to select the linear feed or 90 ° angle design· The machine can automatically complete 5 layers according to production requirements, 4-layer, three-layer, the second layer palletizing or more rows of packs, no separate production molds· Using OMRON "PLC" programmable process controller, to achieve mechanical, electrical, gas integration· Different forms of packaging can be done on the touch screen device of a chain, while the production volume can be counted· Using a specially designed sealing knife, sealing line solid, non-cracking, easy to stick the knife· Feed using a belt conveyor, fast, smooth operation, as required to increase the color film positioning system* Imported photoelectric, accurate positioning* Imported touch screen, various settings and operations can be easily done via the touch screen· SM-6040 dual op imported wind turbines, spread evenly so that hot air furnace chamber, after shrinking effect is more beautiful· Outsourcing of solid steel imports silicone tube, chain conveyor durable rod· Used in Taiwan, "Adventist" inverter control transmission speed, variable speed· Imported insulated cord, reducing heat lossScope
· Mainly applied to daily necessities such as soap, toothpaste, stationery and other collections shrink packaging, tobacco packaging and distribution center of the tobacco rod or other various shapes packaging laminated packaging.Technical Data SheetModel
ST-6030AE
SM-6040
Mechanical size L × W × H (mm)
1382×2716×1991
2800×900×1690
Oven cavity dimensions L × W × H (mm)
/
1800×600×400
The maximum package size L × W × H (mm)
400×300L×300
1500×400×300
Transverse sealing knife Size L (mm)
700
/
Temperature (0C)
0-200
0-400
Table height (mm)
850±50
850±50
Packing speed (pcs / min)
8-15
25-30
Weight (kg)
600
600
Power (kw)
1.2
24
Power supply
3PH 380V 50Hz
3PH 380V 50Hz
External gas source (kg / cm2)
6-8
/
Suitable for shrink film
PE
PE
