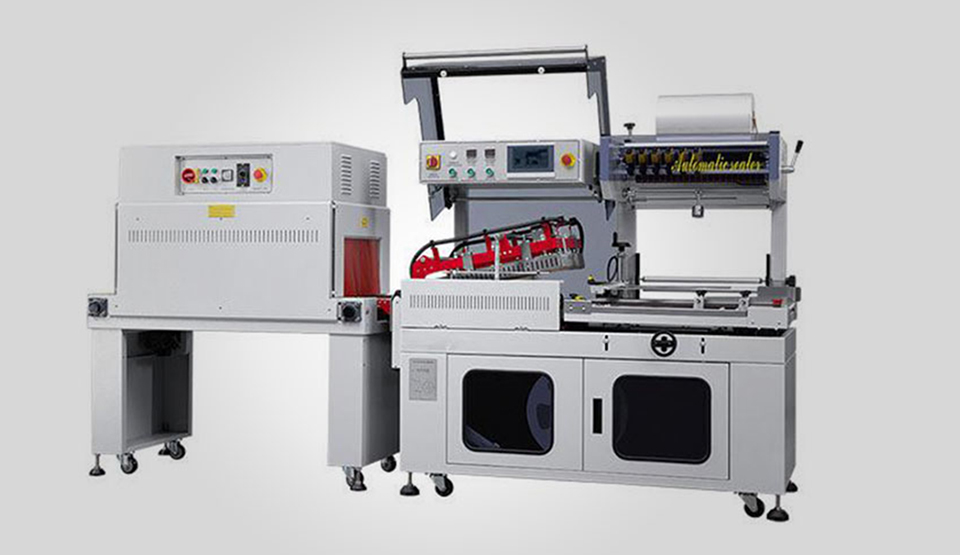

FL5545TBA / TBB + SM4525 automatic "L" shaped sealing, shrink packaging machine
Technical features
1.FL-5545TBA is a fully automated unmanned operation of the "L" type sealer, widely used in production packaging assembly line, high working efficiency, automatic film feeding punch device and guide the membrane system and manual adjustment manual adjustment of the feed conveyor platform for different width and height of the product, FL-5545TBB model also has close contact function, specifically designed for packaging small products

2. The sealing knife DuPont Teflon anti-stick coating high temperature aluminum knife, sealing will not crack, not coke, do not smoke zero pollution

3. equipped with imported photoelectric detection, horizontal, vertical detection of a group, to facilitate switching choice for thin and small packaging, can also be easily complete the sealing packaging operations

4. Automatic feeding, length can also via a combination of electric eye and timers, automatic adjustment. Equipped with an induction motor, automatic take-up waste

5. When the package size change, adjustment is very simple, do not change the mold and bag filter

6. The different sizes of packaging products can also mix and match to achieve sales results

7. Using the original "Omron" digital temperature controller, built-in PID function, sealing temperature is extremely sensitive and accurate, can be arbitrarily set. Do not worry about hurting the product temperature is inaccurate, sealing knife itself also comes with automatic protection function, effectively prevent the misuse cut packaging

8. The sealing and cutting machine is equipped with plexiglass shield part, and with automatic alarm function, greatly improving the operator's safety

9. The entire machine and production line to realize unmanned operation connected

10. The film down synchronization mechanism specifically designed to correct the deviation film

11. easy to tear features can be added according to customer requirements

Scope
Apply to software, food, cosmetics, printing, pharmaceutical and flooring, ceramic, beverages, metal and other industries shrink packaging large quantities.



Technical Data Sheet
